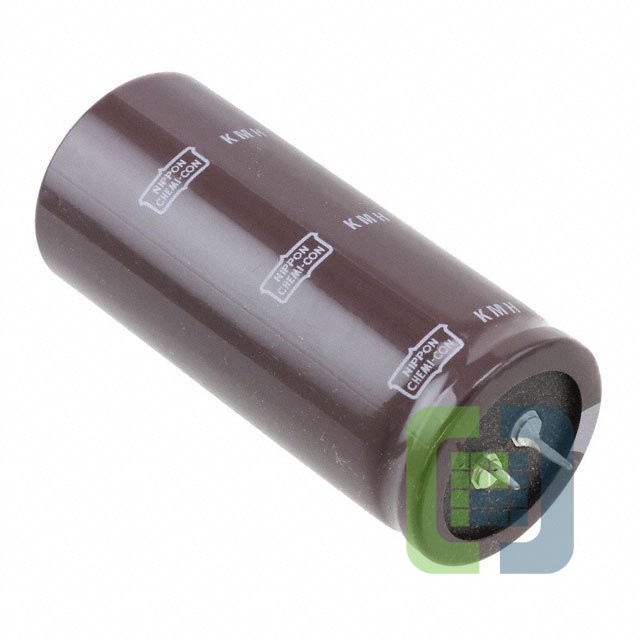

EKMH451VNN561MA63T
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 560UF 20% 450V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet EKMH451VNN561MA63T Datasheet
-
ECAD Model
- Share
In Stock: 110
Can ship immediately
Pricing:
- 1$7.41
- 10$6.58874
- 100$5.27099
- 500$4.52977
- 1,000$4.20032
Quote It
Technical Details
- Series:KMH
- Package:Bulk
- Part Status:Obsolete
- Capacitance:560 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):444mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.11 A @ 120 Hz
- Ripple Current @ High Frequency:3.0173 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.138" (3.50mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):2.480" (63.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
