EKXJ401ELL390MJ40S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant

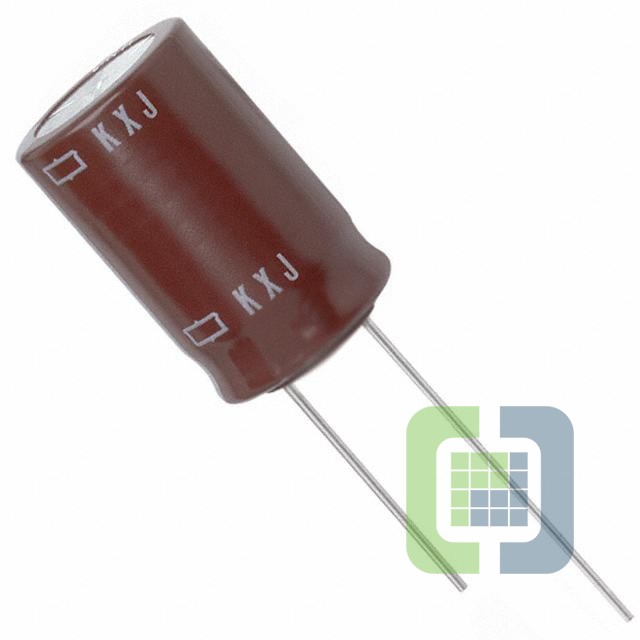

- DescriptionCAP ALUM 39UF 20% 400V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EKXJ401ELL390MJ40S Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$0.82242
- 500$0.78504
Quote It
Technical Details
- Series:KXJ
- Package:Bulk
- Part Status:Active
- Capacitance:39 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:12000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:340 mA @ 120 Hz
- Ripple Current @ High Frequency:850 mA @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):1.634" (41.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
