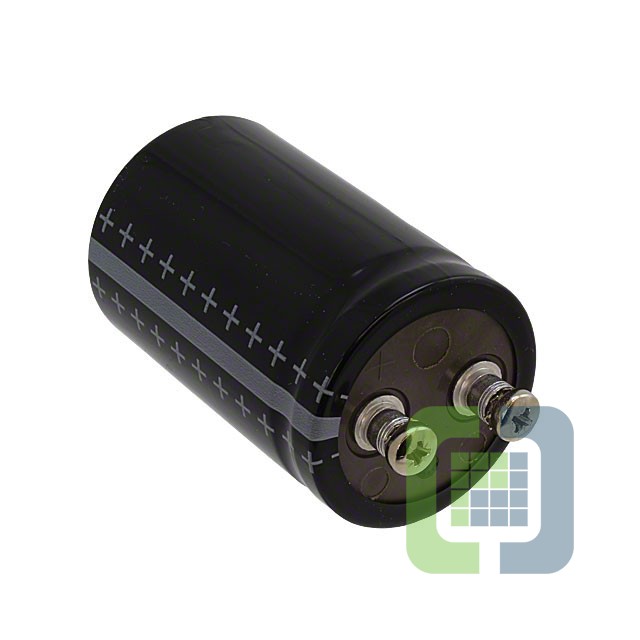

B41550A9158Q000

Technical Details

• Series:B41550
• Package:Bulk
• Part Status:Obsolete
• Capacitance:1500 µF
• Tolerance:-10%, +30%
• Voltage - Rated:100 V
• ESR (Equivalent Series Resistance):83mOhm @ 100Hz
• Lifetime @ Temp.:10000 Hrs @ 105°C
• Operating Temperature:-55°C ~ 105°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:8.8 A @ 100 Hz
• Ripple Current @ High Frequency:-
• Impedance:34 mOhms
• Lead Spacing:0.500" (12.70mm)
• Size / Dimension:1.406" Dia (35.70mm)
• Height - Seated (Max):2.232" (56.70mm)
• Surface Mount Land Size:-
• Mounting Type:Chassis Mount
• Package / Case:Radial, Can - Screw Terminals
