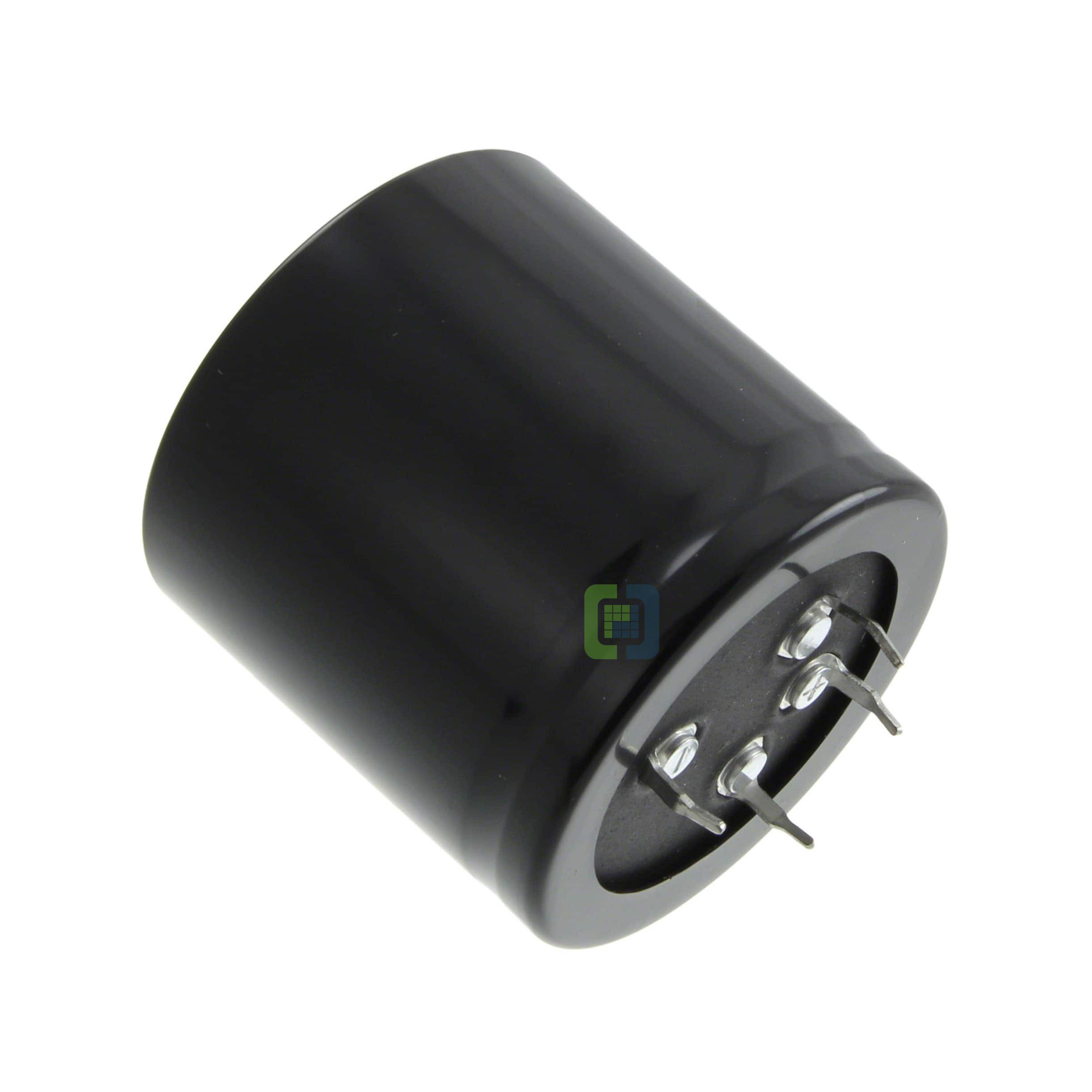

B43511E0827M007

Technical Details

• Series:B43511
• Package:Bulk
• Part Status:Active
• Capacitance:820 µF
• Tolerance:±20%
• Voltage - Rated:420 V
• ESR (Equivalent Series Resistance):190mOhm @ 100Hz
• Lifetime @ Temp.:12000 Hrs @ 85°C
• Operating Temperature:-40°C ~ 85°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:4.1 A @ 100 Hz
• Ripple Current @ High Frequency:-
• Impedance:200 mOhms
• Lead Spacing:0.886" (22.50mm)
• Size / Dimension:1.378" Dia (35.00mm)
• Height - Seated (Max):3.228" (82.00mm)
• Surface Mount Land Size:-
• Mounting Type:Through Hole
• Package / Case:Radial, Can - Snap-In - 4 Lead
