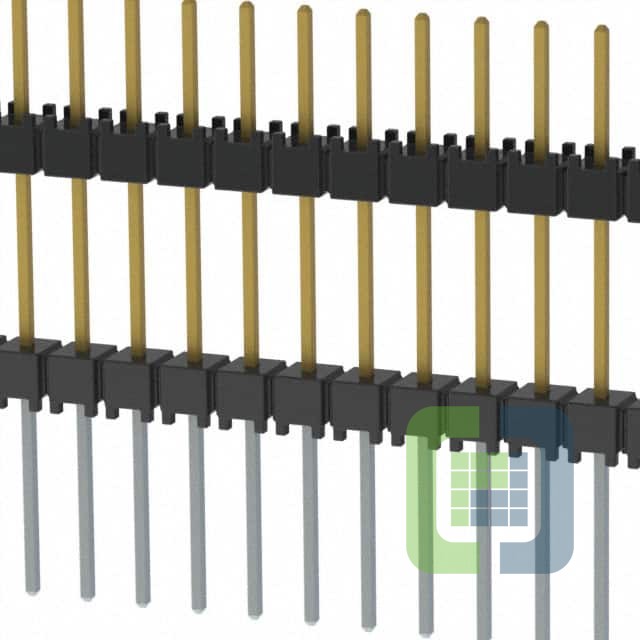

EW-16-12-S-S-500
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 16POS 0.1 STACK T/H
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
-
ECAD Model
- Share
In Stock: 356
Can ship immediately
Pricing:
- 1$3.54
Quote It
Technical Details
- Series:Flex Stack, EW
- Package:Bulk
- Part Status:Active
- Number of Positions:16
- Pitch:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing:-
- Length - Overall Pin:1.030" (26.162mm)
- Length - Post (Mating):0.200" (5.080mm)
- Length - Stack Height:0.500" (12.700mm)
- Length - Tail:0.330" (8.382mm)
- Mounting Type:Through Hole
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):30.0µin (0.76µm)
- Color:Black
