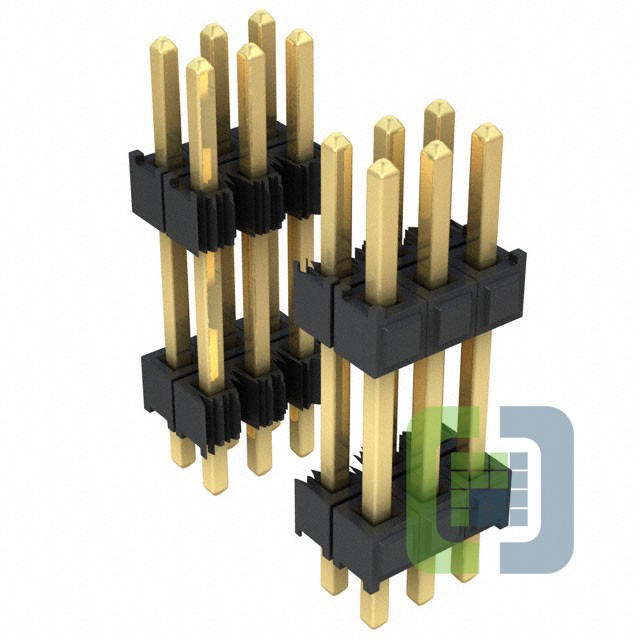

DW-15-11-G-D-523
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 30POS 0.1 STACK T/H
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
- Datasheet DW-15-11-G-D-523 Datasheet
-
ECAD Model
- Share
In Stock: 781
Can ship immediately
Pricing:
- 1$4.7
Quote It
Technical Details
- Series:Flex Stack, DW
- Package:Bulk
- Part Status:Active
- Number of Positions:30
- Pitch:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing:0.100" (2.54mm)
- Length - Overall Pin:0.930" (23.622mm)
- Length - Post (Mating):0.296" (7.518mm)
- Length - Stack Height:0.524" (13.310mm)
- Length - Tail:0.110" (2.794mm)
- Mounting Type:Through Hole
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):10.0µin (0.25µm)
- Color:Black
