DW-23-10-L-D-500
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

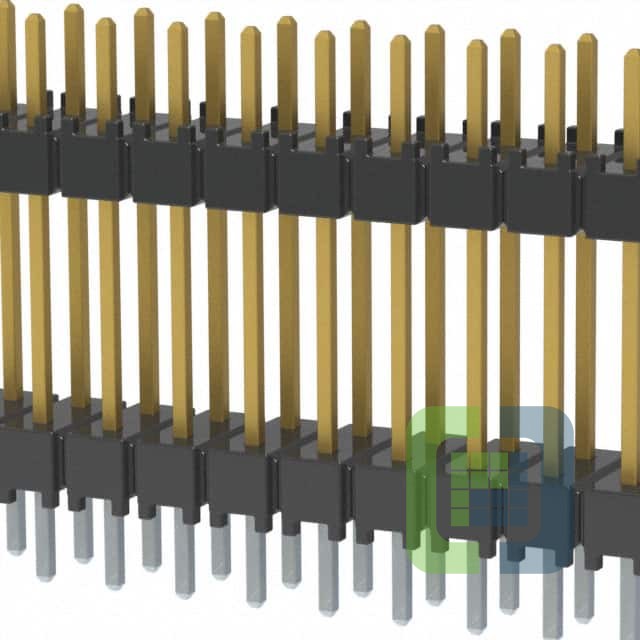

- DescriptionCONN HDR 46POS 0.1 STACK T/H
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
- Datasheet DW-23-10-L-D-500 Datasheet
-
ECAD Model
- Share
In Stock: 637
Can ship immediately
Pricing:
- 1$5.73
Quote It
Technical Details
- Series:Flex Stack, DW
- Package:Bulk
- Part Status:Active
- Number of Positions:46
- Pitch:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing:0.100" (2.54mm)
- Length - Overall Pin:0.830" (21.082mm)
- Length - Post (Mating):0.220" (5.588mm)
- Length - Stack Height:0.500" (12.700mm)
- Length - Tail:0.110" (2.794mm)
- Mounting Type:Through Hole
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):10.0µin (0.25µm)
- Color:Black
