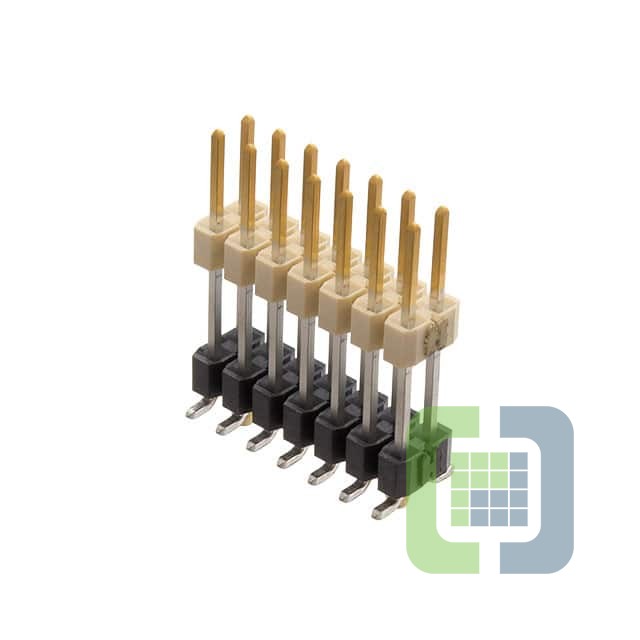

HW-07-10-F-D-510-SM-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 14POS 0.1 STACK SMD
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
- 1$2.59
Quote It
Technical Details
- Series:Flex Stack, HW
- Package:Tube
- Part Status:Active
- Number of Positions:14
- Pitch:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing:0.100" (2.54mm)
- Length - Overall Pin:0.765" (19.431mm)
- Length - Post (Mating):0.255" (6.477mm)
- Length - Stack Height:0.510" (12.954mm)
- Length - Tail:-
- Mounting Type:Surface Mount
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):3.00µin (0.076µm)
- Color:Black
