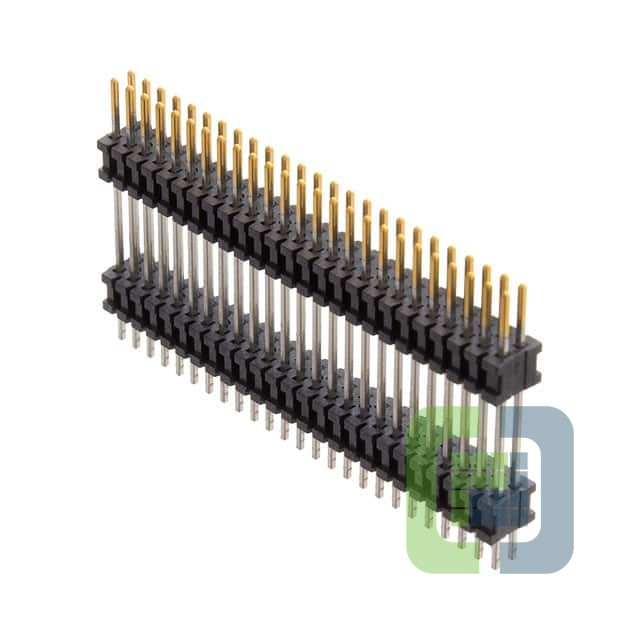

FW-25-04-F-D-446-150
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 50POS 0.05 STACK T/H
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
- Datasheet FW-25-04-F-D-446-150 Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$6.21
Quote It
Technical Details
- Series:Flex Stack, FW
- Package:Tube
- Part Status:Active
- Number of Positions:50
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing:0.050" (1.27mm)
- Length - Overall Pin:0.686" (17.424mm)
- Length - Post (Mating):0.150" (3.810mm)
- Length - Stack Height:0.446" (11.328mm)
- Length - Tail:0.090" (2.286mm)
- Mounting Type:Through Hole
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):3.00µin (0.076µm)
- Color:Black
