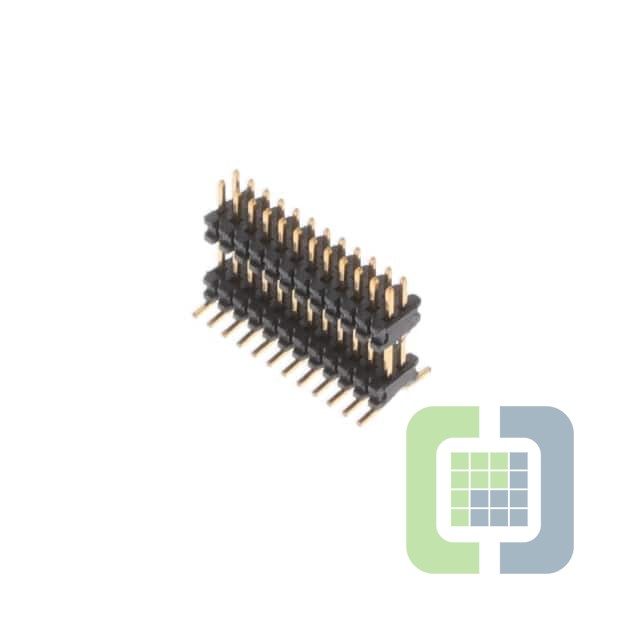

MW-12-03-G-D-230-080
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR BRD STACK 1MM SMD
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
-
ECAD Model
- Share
In Stock: 244
Can ship immediately
Pricing:
- 1$6.4
Quote It
Technical Details
- Series:Flex Stack, MW
- Package:Bulk
- Part Status:Active
- Number of Positions:24
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Row Spacing:0.039" (1.00mm)
- Length - Overall Pin:-
- Length - Post (Mating):0.080" (2.032mm)
- Length - Stack Height:0.390" (9.900mm)
- Length - Tail:-
- Mounting Type:Surface Mount
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):10.0µin (0.25µm)
- Color:Black, Natural
