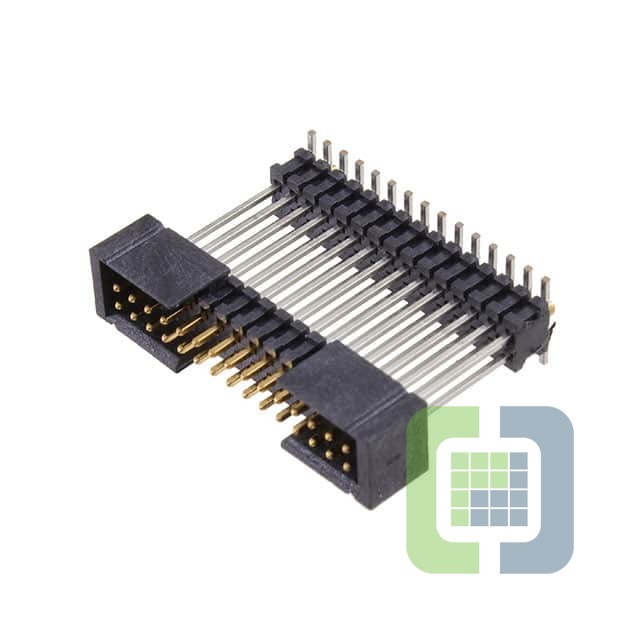

FW-15-05-F-D-505-075-ES-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 30POS 0.05 STACK SMD
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
- Datasheet FW-15-05-F-D-505-075-ES-A Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$6.81
Quote It
Technical Details
- Series:Flex Stack, FW
- Package:Tube
- Part Status:Active
- Number of Positions:30
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing:0.050" (1.27mm)
- Length - Overall Pin:0.580" (14.732mm)
- Length - Post (Mating):0.075" (1.905mm)
- Length - Stack Height:0.505" (12.827mm)
- Length - Tail:-
- Mounting Type:Surface Mount
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):3.00µin (0.076µm)
- Color:Black
