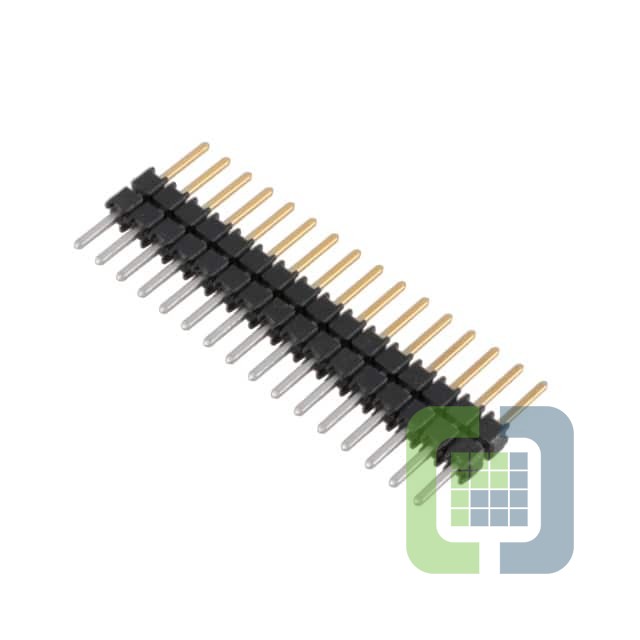

ZW-16-15-F-S-225-175
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 16POS 0.1 STACK T/H
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
- Datasheet ZW-16-15-F-S-225-175 Datasheet
-
ECAD Model
- Share
In Stock: 301
Can ship immediately
Pricing:
- 1$1.66
Quote It
Technical Details
- Series:Flex Stack, ZW
- Package:Bulk
- Part Status:Active
- Number of Positions:16
- Pitch:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing:-
- Length - Overall Pin:0.630" (16.002mm)
- Length - Post (Mating):0.230" (5.842mm)
- Length - Stack Height:0.225" (5.715mm)
- Length - Tail:0.175" (4.445mm)
- Mounting Type:Through Hole
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):Flash
- Color:Black
