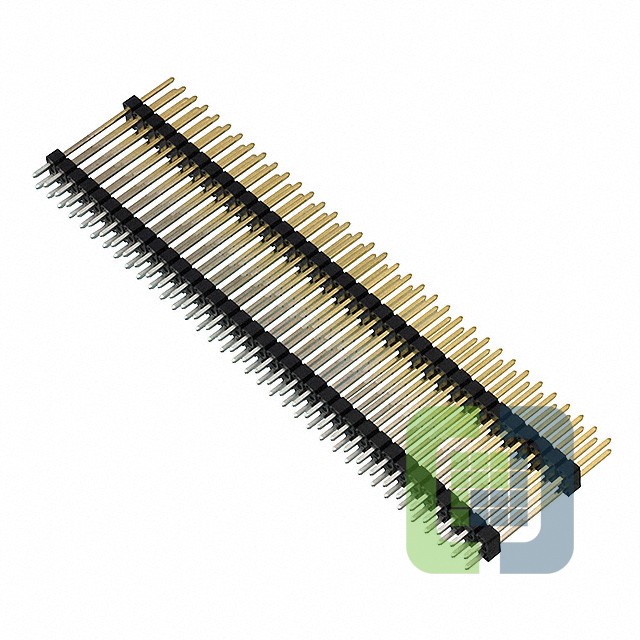

54122-109721650LF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 72POS 0.1 STACK T/H
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
- Datasheet 54122-109721650LF Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$9.2579
- 100$8.56041
Quote It
Technical Details
- Series:BERGSTIK®, MezzSelect™, Basics+
- Package:Bulk
- Part Status:Active
- Number of Positions:72
- Pitch:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing:0.100" (2.54mm)
- Length - Overall Pin:1.025" (26.035mm)
- Length - Post (Mating):0.255" (6.477mm)
- Length - Stack Height:0.650" (16.500mm)
- Length - Tail:0.120" (3.050mm)
- Mounting Type:Through Hole
- Termination:Solder
- Contact Finish - Post (Mating):Gold, GXT™
- Contact Finish Thickness - Post (Mating):30.0µin (0.76µm)
- Color:Black
