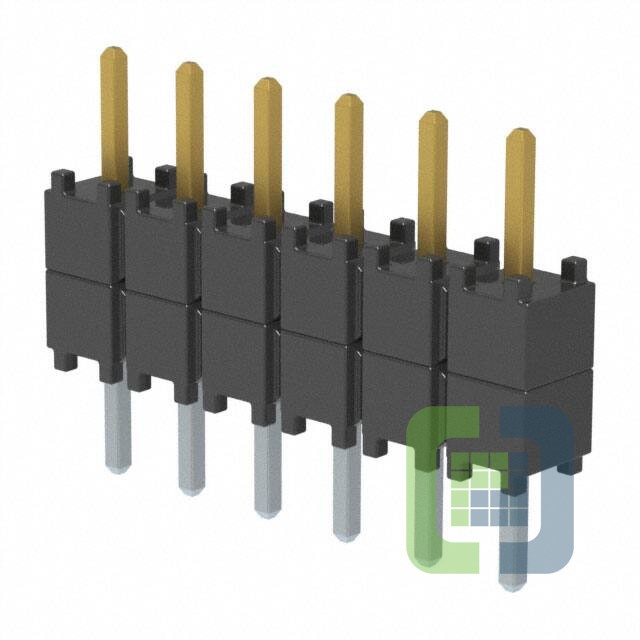

DW-06-07-L-S-200
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 6POS 0.1 STACK T/H GOLD
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
- Datasheet DW-06-07-L-S-200 Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Flex Stack, DW
- Package:Bulk
- Part Status:Active
- Number of Positions:6
- Pitch:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing:-
- Length - Overall Pin:0.430" (10.922mm)
- Length - Post (Mating):0.120" (3.048mm)
- Length - Stack Height:0.200" (5.080mm)
- Length - Tail:0.110" (2.794mm)
- Mounting Type:Through Hole
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):10.0µin (0.25µm)
- Color:Black
