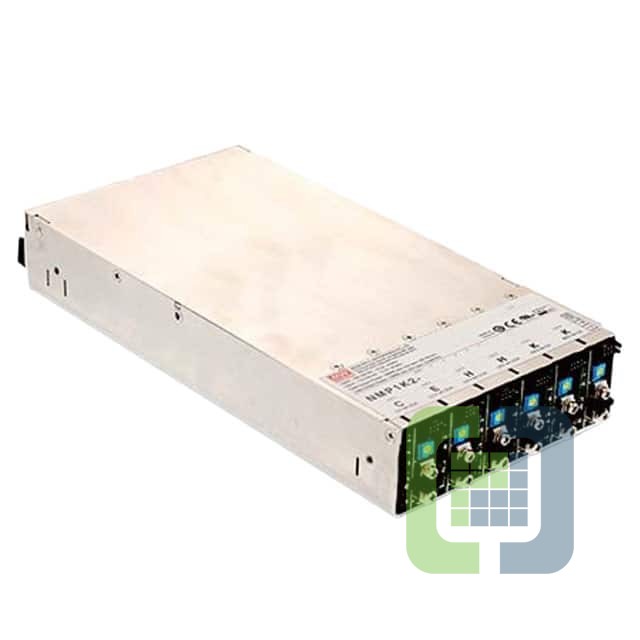

NMP1K2-ECCHHH-00
MEAN WELL
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionNMP CONFIGURABLE POWER SUPPLY 12
- CategoryAC DC Converters
- Datasheet NMP1K2-ECCHHH-00 Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$635.07
Quote It
Technical Details
- Series:NMP (1200W)
- Package:Box
- Part Status:Active
- Type:Enclosed
- Number of Outputs:6
- Voltage - Input:90 ~ 264 VAC, 120 ~ 370 VDC
- Voltage - Output 1:12V
- Voltage - Output 2:5V
- Voltage - Output 3:5V
- Voltage - Output 4:24V
- Current - Output (Max):20A, 36A, 36A, 10A
- Power (Watts):1200W
- Applications:ITE (Commercial), Medical
- Voltage - Isolation:4 kV
- Efficiency:88.5%
- Operating Temperature:-30°C ~ 70°C (With Derating)
- Features:Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
- Mounting Type:Chassis Mount
- Size / Dimension:9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm)
- Approval Agency:CB, CE, cURus, EAC, TUV
- Standard Number:60601-1; 62368-1
