50-10B-10
Vitelec / Cinch Connectivity Solutions- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN EDGE DUAL FMALE 20POS 0.156
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet 50-10B-10 Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$5.3156
- 1,000$5.15501
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Card Type:Non Specified - Dual Edge
- Gender:Female
- Number of Positions/Bay/Row:10
- Number of Positions:20
- Card Thickness:0.054" ~ 0.071" (1.37mm ~ 1.80mm)
- Number of Rows:2
- Pitch:0.156" (3.96mm)
- Read Out:Single
- Features:-
- Mounting Type:Through Hole
- Termination:Solder
- Contact Material:Brass
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Contact Type:Bifurcated Semi Bellows
- Color:Green
- Flange Feature:Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature:-65°C ~ 105°C
Related Products

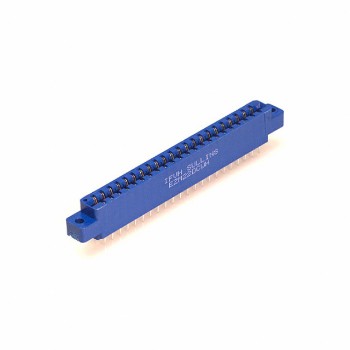

CONN EDGE DUAL FMALE 40POS 0.025
