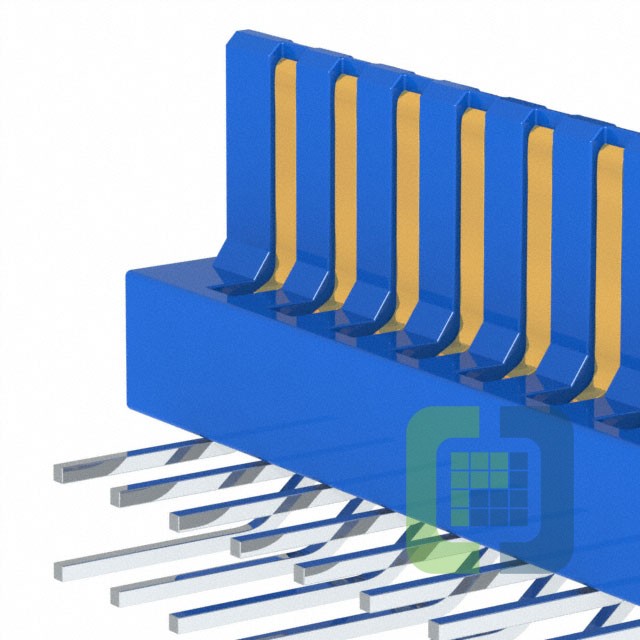

EBM40MMDN
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN CARDEDGE MALE 80POS 0.156
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet EBM40MMDN Datasheet
-
ECAD Model
- Share
In Stock: 129
Can ship immediately
Pricing:
- 1$8.659
- 10$8.659
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Card Type:Fits Female Edgecards
- Gender:Male
- Number of Positions/Bay/Row:40
- Number of Positions:80
- Card Thickness:0.062" (1.57mm)
- Number of Rows:2
- Pitch:0.156" (3.96mm)
- Read Out:Dual
- Features:-
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Contact Type:-
- Color:-
- Flange Feature:-
- Operating Temperature:-65°C ~ 125°C
