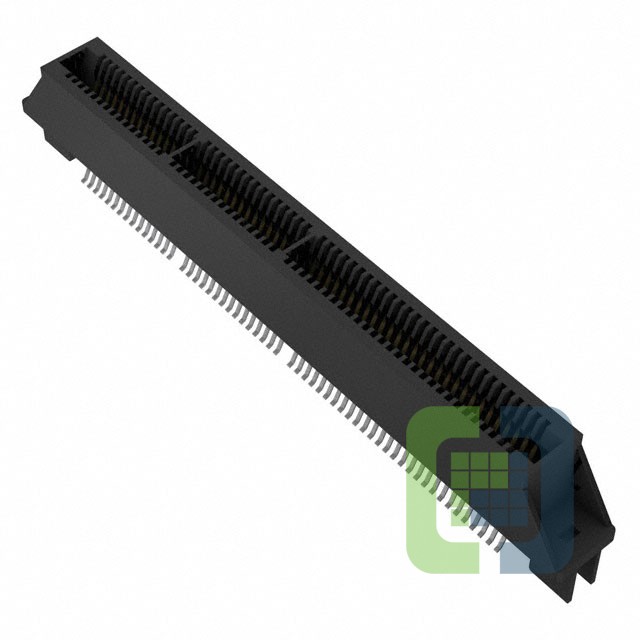

MEC1-160-02-F-D-EM2
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN EDGE DUAL FMALE 120P 0.039
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet MEC1-160-02-F-D-EM2 Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$12.36227
- 22$11.68376
Quote It
Technical Details
- Series:MEC1
- Package:Tray
- Part Status:Active
- Card Type:Non Specified - Dual Edge
- Gender:Female
- Number of Positions/Bay/Row:-
- Number of Positions:120
- Card Thickness:0.062" (1.57mm)
- Number of Rows:2
- Pitch:0.039" (1.00mm)
- Read Out:Dual
- Features:-
- Mounting Type:Surface Mount
- Termination:Solder
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Contact Type:Loop Bellows
- Color:Black
- Flange Feature:-
- Operating Temperature:-55°C ~ 125°C
