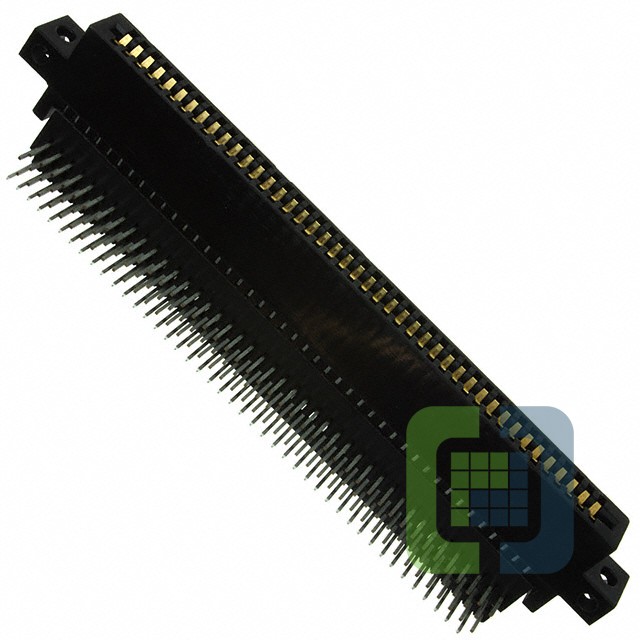

ACB86DKBS-S1075
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN EDGE DUAL FMALE 172POS .100
- CategoryCard Edge Connectors - Edgeboard Connectors
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Card Type:Non Specified - Dual Edge, Bi-Level
- Gender:Female
- Number of Positions/Bay/Row:86
- Number of Positions:172
- Card Thickness:0.062" (1.57mm)
- Number of Rows:2
- Pitch:0.100" (2.54mm)
- Read Out:Dual
- Features:Bi-Level - High Density
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Contact Material:Beryllium Copper
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Contact Type:Cantilever
- Color:Black
- Flange Feature:Side Mount Opening, Staggered Ears, Unthreaded, 0.125" (3.18mm) Dia
- Operating Temperature:-65°C ~ 150°C
