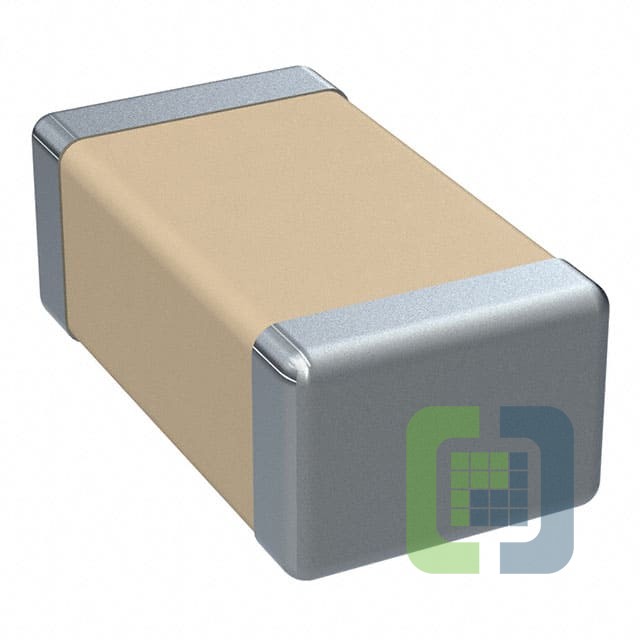

C0805X472KCRACAUTO

Technical Details

• Series:SMD Auto X7R HV Flex
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Capacitance:4700 pF
• Tolerance:±10%
• Voltage - Rated:500V
• Temperature Coefficient:X7R
• Operating Temperature:-55°C ~ 125°C
• Features:Low ESL, Soft Termination, High Voltage
• Ratings:AEC-Q200

• Applications:Automotive, Boardflex Sensitive
• Failure Rate:-
• Mounting Type:Surface Mount, MLCC
• Package / Case:0805 (2012 Metric)
• Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
• Height - Seated (Max):-
• Thickness (Max):0.055" (1.40mm)
• Lead Spacing:-
• Lead Style:-
