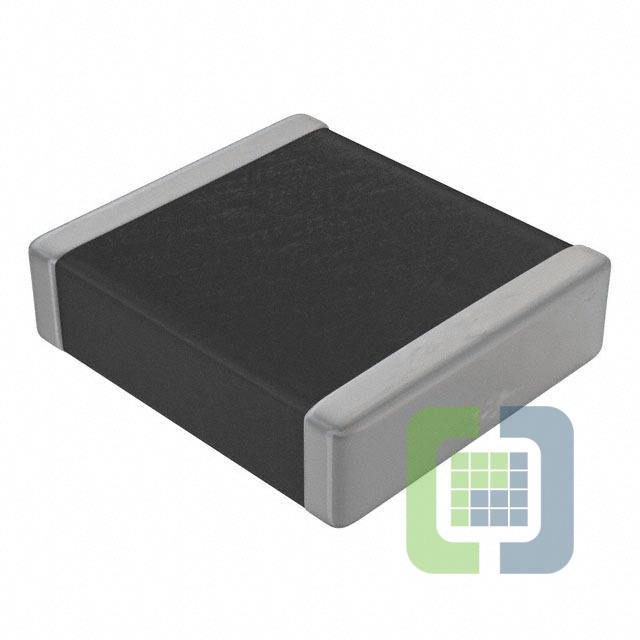

C2220X562JFGACAUTO
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMSMDHIVOLTAGE5600PF 1500V
- CategoryCeramic Capacitors
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$1.64068
Quote It
Technical Details
- Series:SMD Auto C0G HV Flex
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:5600 pF
- Tolerance:±5%
- Voltage - Rated:1500V (1.5kV)
- Temperature Coefficient:C0G, NP0
- Operating Temperature:-55°C ~ 125°C
- Features:Low ESL, Soft Termination, High Voltage
- Ratings:AEC-Q200
- Applications:Automotive, Boardflex Sensitive
- Failure Rate:-
- Mounting Type:Surface Mount, MLCC
- Package / Case:2220 (5750 Metric)
- Size / Dimension:0.232" L x 0.197" W (5.90mm x 5.00mm)
- Height - Seated (Max):-
- Thickness (Max):0.106" (2.70mm)
- Lead Spacing:-
- Lead Style:-
