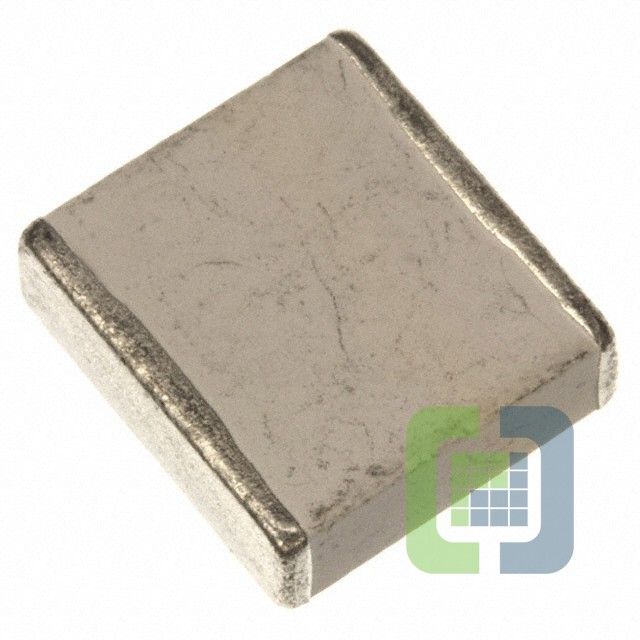

HQCEHA561JAT9A
Elco (AVX)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP CER 560PF 3KV NP0 3838
- CategoryCeramic Capacitors
- Datasheet HQCEHA561JAT9A Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Hi-Q®
- Package:Bulk
- Part Status:Obsolete
- Capacitance:560 pF
- Tolerance:±5%
- Voltage - Rated:3000V (3kV)
- Temperature Coefficient:C0G, NP0
- Operating Temperature:-55°C ~ 125°C
- Features:High Q, Low Loss, Ultra Low ESR, High Voltage
- Ratings:-
- Applications:RF, Microwave, High Frequency
- Failure Rate:-
- Mounting Type:Surface Mount, MLCC
- Package / Case:3838 (9797 Metric)
- Size / Dimension:0.380" L x 0.380" W (9.65mm x 9.65mm)
- Height - Seated (Max):-
- Thickness (Max):0.170" (4.32mm)
- Lead Spacing:-
- Lead Style:-
