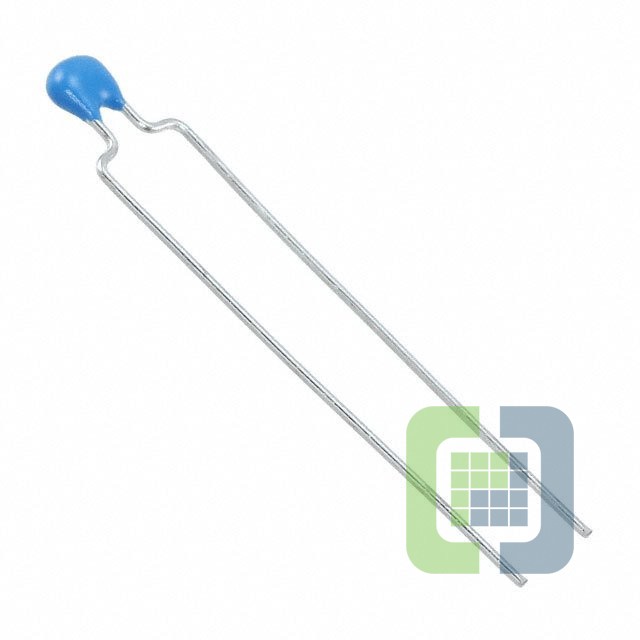

RCE5C2A391J0M1H03A

Technical Details

• Series:RCE
• Package:Cut Tape (CT)Tape & Box (TB)
• Part Status:Active
• Capacitance:390 pF
• Tolerance:±5%
• Voltage - Rated:100V
• Temperature Coefficient:C0G, NP0
• Operating Temperature:-55°C ~ 125°C
• Features:-
• Ratings:AEC-Q200

• Applications:Automotive
• Failure Rate:-
• Mounting Type:Through Hole
• Package / Case:Radial
• Size / Dimension:0.142" L x 0.098" W (3.60mm x 2.50mm)
• Height - Seated (Max):0.138" (3.50mm)
• Thickness (Max):-
• Lead Spacing:0.197" (5.00mm)
• Lead Style:Formed Leads
