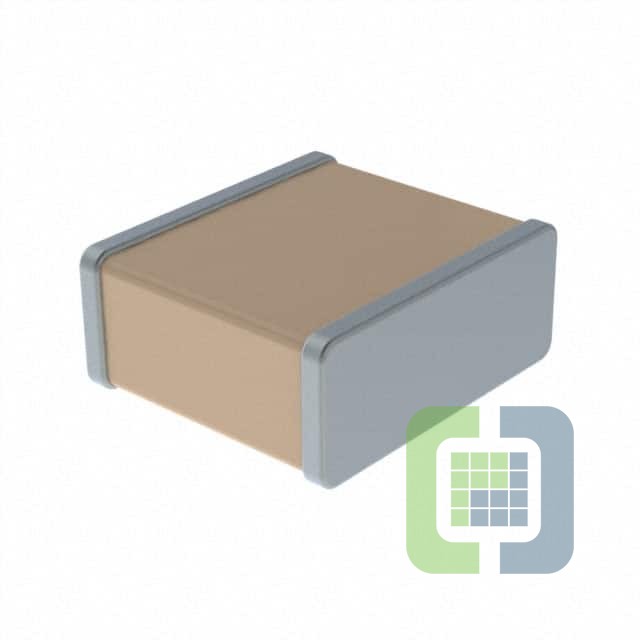

HV2225Y561JXMATHV
Vishay / Vitramon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP CER 560PF 5KV X7R 2225
- CategoryCeramic Capacitors
- Datasheet HV2225Y561JXMATHV Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
- 1$1.18247
- 4,000$1.18247
Quote It
Technical Details
- Series:HV
- Package:Tape & Reel (TR)
- Part Status:Active
- Capacitance:560 pF
- Tolerance:±5%
- Voltage - Rated:5000V (5kV)
- Temperature Coefficient:X7R
- Operating Temperature:-55°C ~ 125°C
- Features:High Voltage
- Ratings:-
- Applications:General Purpose
- Failure Rate:-
- Mounting Type:Surface Mount, MLCC
- Package / Case:2225 (5763 Metric)
- Size / Dimension:0.220" L x 0.250" W (5.59mm x 6.35mm)
- Height - Seated (Max):-
- Thickness (Max):0.106" (2.70mm)
- Lead Spacing:-
- Lead Style:-
