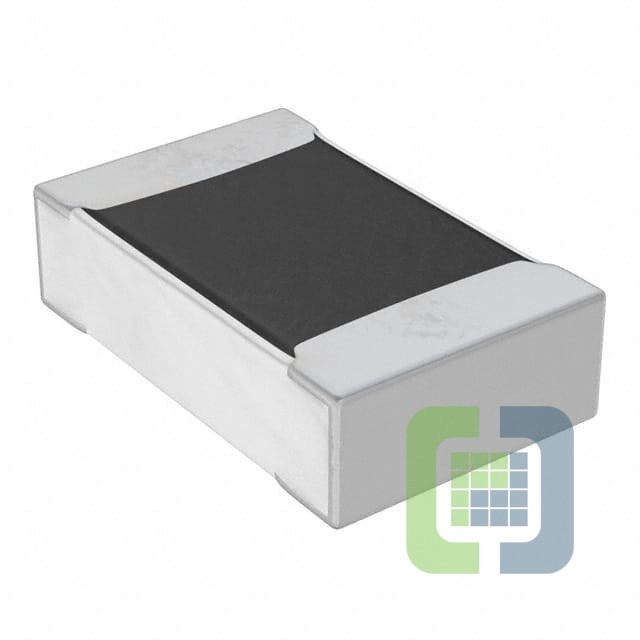

RNCF0805BTE680R
Stackpole Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 680 OHM 0.1% 1/8W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet RNCF0805BTE680R Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$0.058
- 5,000$0.058
Quote It
Technical Details
- Series:RNCF
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:680 Ohms
- Tolerance:±0.1%
- Power (Watts):0.125W, 1/8W
- Composition:Thin Film
- Features:Automotive AEC-Q200
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:AEC-Q200
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
