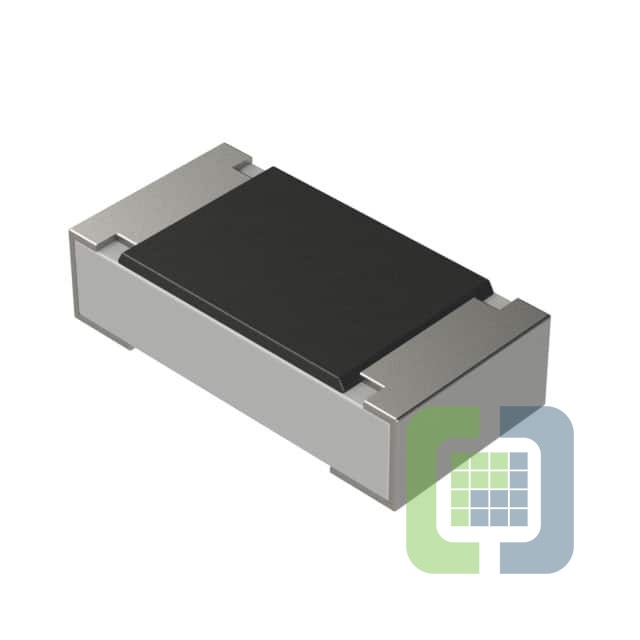

CSR0603JK80L0
Stackpole Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.08 OHM 5% 1/8W 0603
- CategoryChip Resistor - Surface Mount
- Datasheet CSR0603JK80L0 Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$0.064
- 1,000$0.064
Quote It
Technical Details
- Series:CSR
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:80 mOhms
- Tolerance:±5%
- Power (Watts):0.125W, 1/8W
- Composition:Thick Film
- Features:Current Sense
- Temperature Coefficient:±300ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Ratings:-
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
