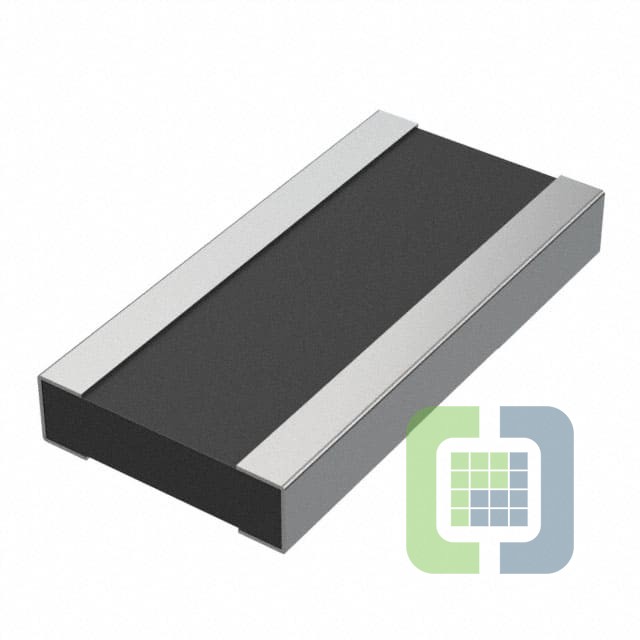

CSR1225JK16L0
Stackpole Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.016 OHM 5% 3W 2512 WIDE
- CategoryChip Resistor - Surface Mount
- Datasheet CSR1225JK16L0 Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$0.20625
- 1,000$0.20625
Quote It
Technical Details
- Series:CSR
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:16 mOhms
- Tolerance:±5%
- Power (Watts):3W
- Composition:Thick Film
- Features:Current Sense
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:Wide 2512 (6432 Metric), 1225
- Supplier Device Package:1225
- Ratings:-
- Size / Dimension:0.122" L x 0.248" W (3.10mm x 6.30mm)
- Height - Seated (Max):0.041" (1.05mm)
- Number of Terminations:2
- Failure Rate:-
