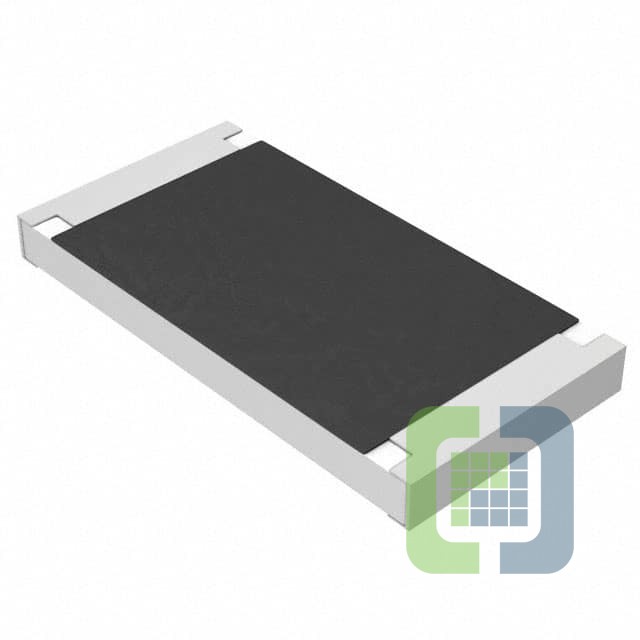

ERJ-A1AJ561U
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 560 OHM 1.33W 2512 WIDE
- CategoryChip Resistor - Surface Mount
- Datasheet ERJ-A1AJ561U Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
- 1$0.3023
- 4,000$0.3023
Quote It
Technical Details
- Series:ERJ-A1
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:560 Ohms
- Tolerance:±5%
- Power (Watts):1.33W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Current Sense
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:Wide 2512 (6432 Metric), 1225 Convex
- Supplier Device Package:2512
- Ratings:AEC-Q200
- Size / Dimension:0.126" L x 0.252" W (3.20mm x 6.40mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
