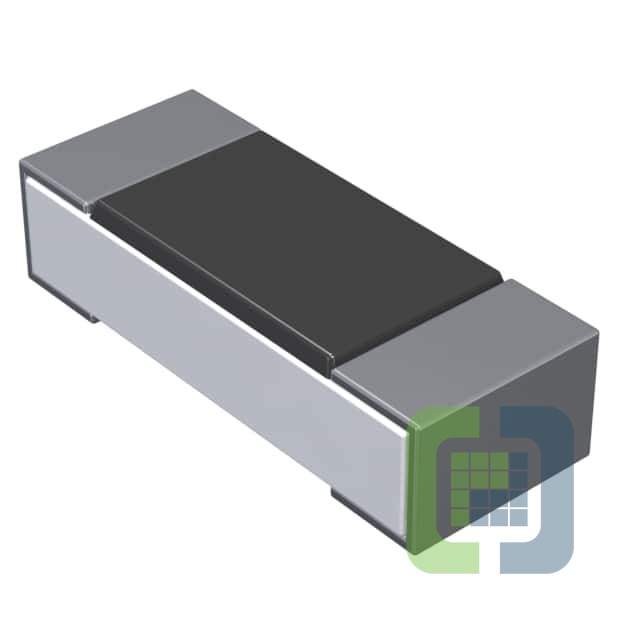

CR0805-JW-565ELF
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 5.6M OHM 5% 1/8W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet CR0805-JW-565ELF Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
- 1$0.00467
- 25,000$0.00467
Quote It
Technical Details
- Series:CR0805
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:5.6 MOhms
- Tolerance:±5%
- Power (Watts):0.125W, 1/8W
- Composition:Thick Film
- Features:Moisture Resistant
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:-
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.024" (0.60mm)
- Number of Terminations:2
- Failure Rate:-
