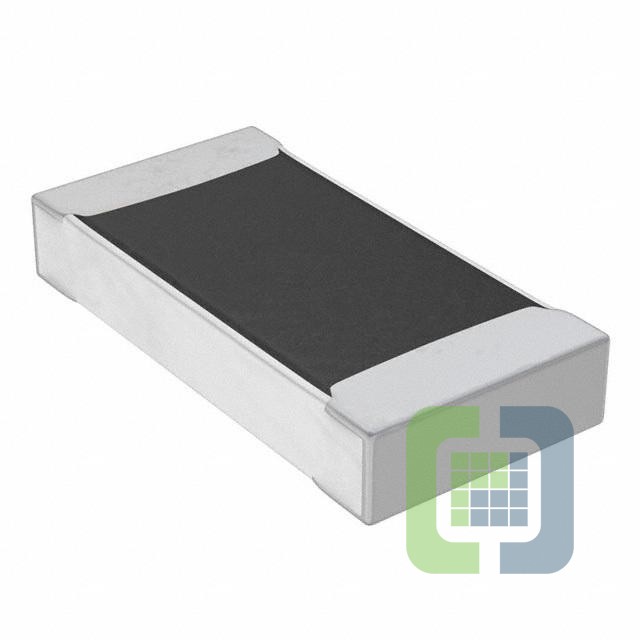

HVCB1206JTL2M20
Stackpole Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 2.2M OHM 5% 1/3W 1206
- CategoryChip Resistor - Surface Mount
- Datasheet HVCB1206JTL2M20 Datasheet
-
ECAD Model
- Share
In Stock: 121
Can ship immediately
Pricing:
- 1$0.98175
- 4,000$0.952
Quote It
Technical Details
- Series:HVC
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:2.2 MOhms
- Tolerance:±5%
- Power (Watts):0.333W, 1/3W
- Composition:Thick Film
- Features:High Voltage, Moisture Resistant, Pulse Withstanding
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 150°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:-
- Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max):0.030" (0.75mm)
- Number of Terminations:2
- Failure Rate:-
