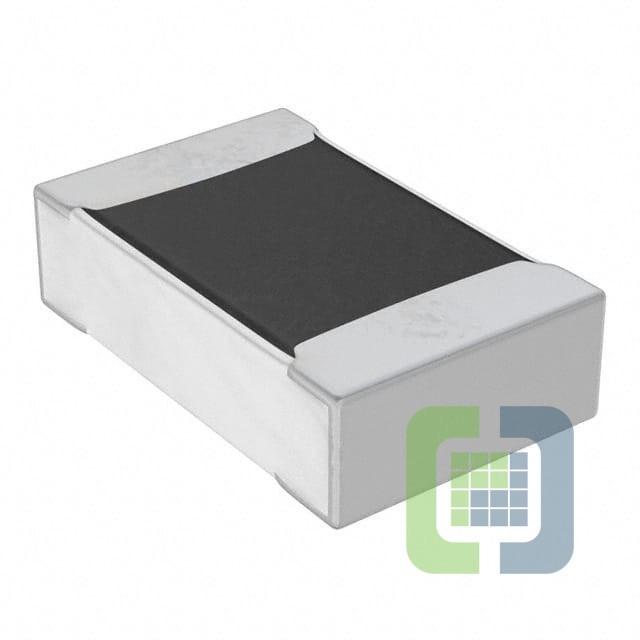

HVCB0805JTD4K70
Stackpole Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 4.7K OHM 5% 1/5W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet HVCB0805JTD4K70 Datasheet
-
ECAD Model
- Share
In Stock: 172
Can ship immediately
Pricing:
- 1$1.05777
- 5,000$1.03793
Quote It
Technical Details
- Series:HVC
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:4.7 kOhms
- Tolerance:±5%
- Power (Watts):0.2W, 1/5W
- Composition:Thick Film
- Features:High Voltage, Moisture Resistant, Pulse Withstanding
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 150°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:-
- Size / Dimension:0.079" L x 0.050" W (2.01mm x 1.27mm)
- Height - Seated (Max):0.025" (0.64mm)
- Number of Terminations:2
- Failure Rate:-
