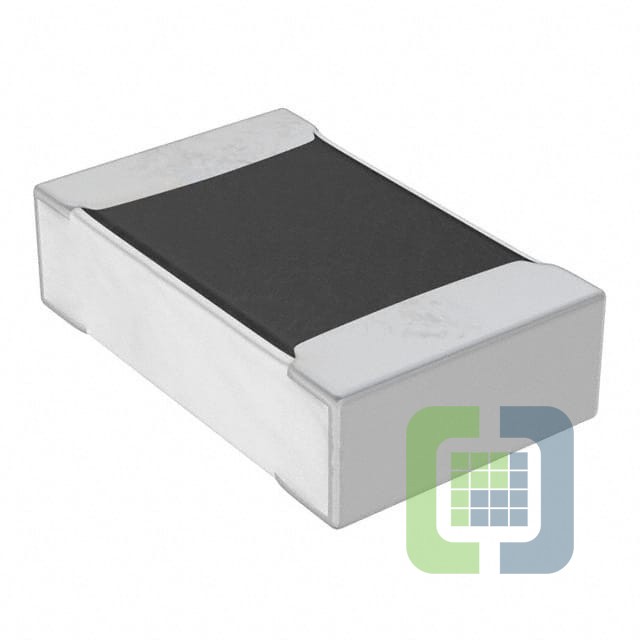

HVCB0805JKL1G00
Stackpole Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 1G OHM 5% 1/5W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet HVCB0805JKL1G00 Datasheet
-
ECAD Model
- Share
In Stock: 191
Can ship immediately
Pricing:
- 1$2.576
- 5,000$2.576
Quote It
Technical Details
- Series:HVC
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:1 GOhms
- Tolerance:±5%
- Power (Watts):0.2W, 1/5W
- Composition:Thick Film
- Features:High Voltage, Moisture Resistant, Pulse Withstanding
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 150°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:-
- Size / Dimension:0.079" L x 0.050" W (2.01mm x 1.27mm)
- Height - Seated (Max):0.025" (0.64mm)
- Number of Terminations:2
- Failure Rate:-
