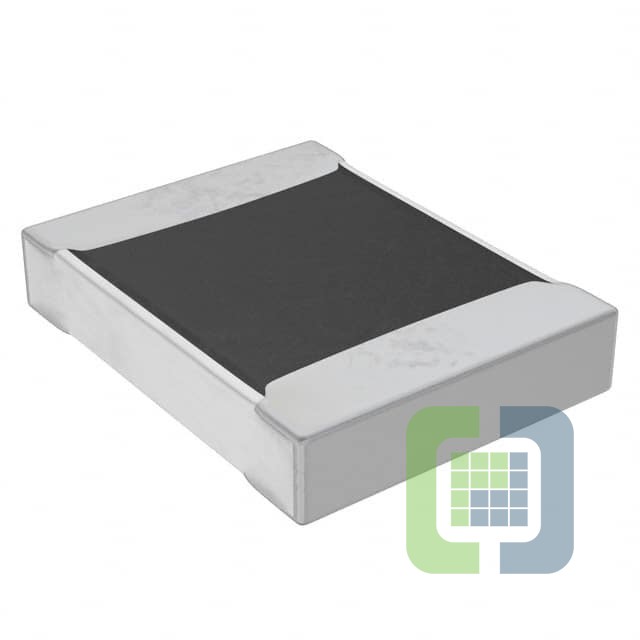

TNPV1210560KBYEA
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 560 KOHM 0.1% 1/3W 1210
- CategoryChip Resistor - Surface Mount
- Datasheet TNPV1210560KBYEA Datasheet
-
ECAD Model
- Share
In Stock: 7,689
Can ship immediately
Pricing:
- 1$3.69
- 5,000$1.90849
Quote It
Technical Details
- Series:TNPV
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:560 kOhms
- Tolerance:±0.1%
- Power (Watts):0.333W, 1/3W
- Composition:Thin Film
- Features:Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant
- Temperature Coefficient:±10ppm/°C
- Operating Temperature:-55°C ~ 125°C
- Package / Case:1210 (3225 Metric)
- Supplier Device Package:1210
- Ratings:AEC-Q200
- Size / Dimension:0.126" L x 0.096" W (3.20mm x 2.45mm)
- Height - Seated (Max):0.030" (0.75mm)
- Number of Terminations:2
- Failure Rate:-
