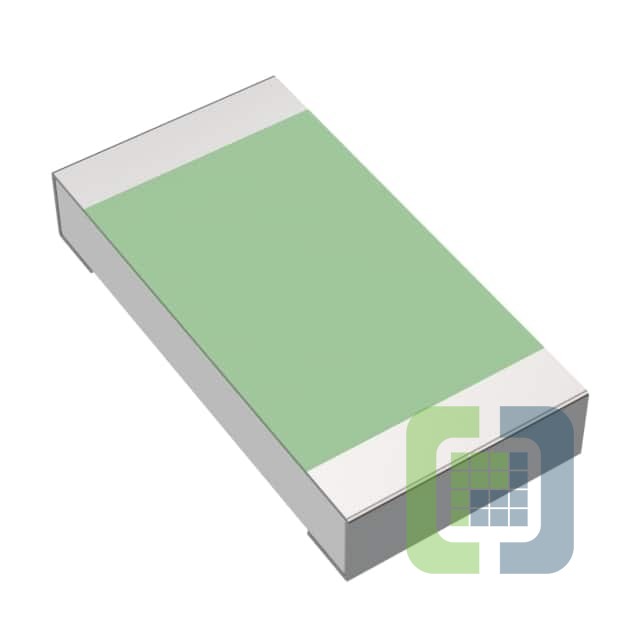

TNPW12061M00BYEA
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 1M OHM 0.1% 2/5W 1206
- CategoryChip Resistor - Surface Mount
- Datasheet TNPW12061M00BYEA Datasheet
-
ECAD Model
- Share
In Stock: 4,782
Can ship immediately
Pricing:
- 1$1.47
- 5,000$0.609
Quote It
Technical Details
- Series:TNPW e3
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:1 MOhms
- Tolerance:±0.1%
- Power (Watts):0.4W, 2/5W
- Composition:Thin Film
- Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
- Temperature Coefficient:±10ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:AEC-Q200
- Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
