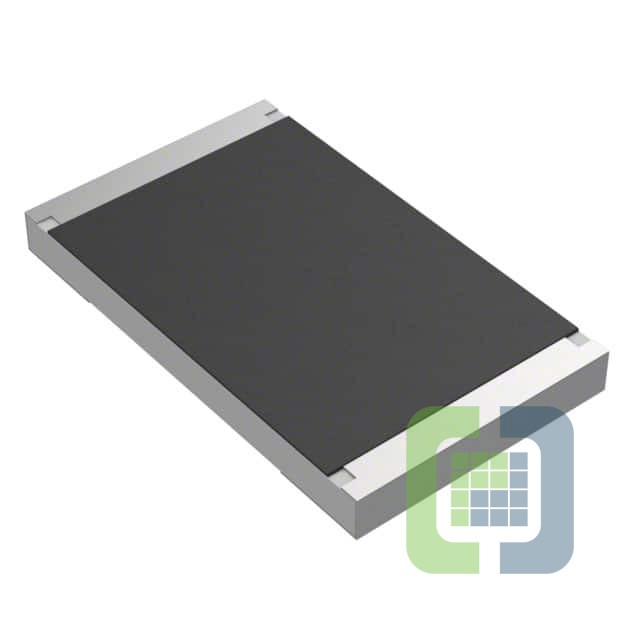

3560680KJT
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 3560 680K 5%
- CategoryChip Resistor - Surface Mount
-
ECAD Model
- Share
In Stock: 2,140
Can ship immediately
Pricing:
- 1$1.7
- 1,000$0.61704
- 2,000$0.60313
- 5,000$0.60092
Quote It
Technical Details
- Series:3560, CGS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:680 kOhms
- Tolerance:±5%
- Power (Watts):6W
- Composition:Thick Film
- Features:-
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:Nonstandard
- Supplier Device Package:-
- Ratings:-
- Size / Dimension:0.457" L x 0.270" W (11.60mm x 6.85mm)
- Height - Seated (Max):0.047" (1.20mm)
- Number of Terminations:2
- Failure Rate:-
