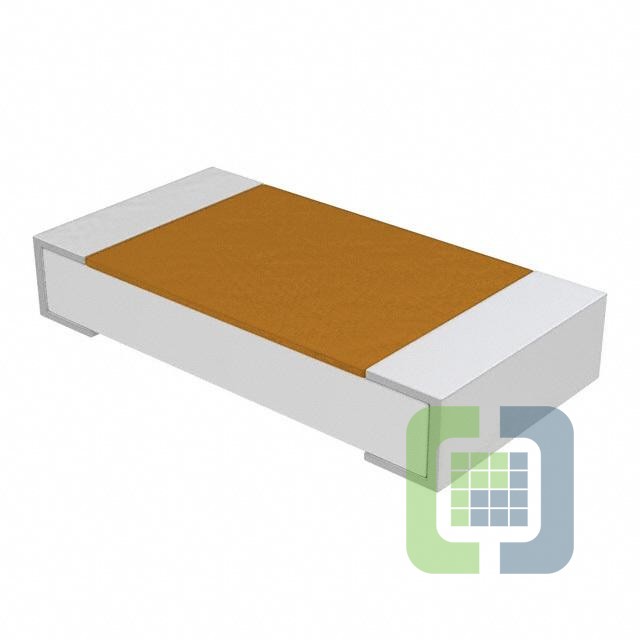

D55342E07B22B6RT5
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 22.6K OHM 0.1% 1/4W 1206
- CategoryChip Resistor - Surface Mount
- Datasheet D55342E07B22B6RT5 Datasheet
-
ECAD Model
- Share
In Stock: 613
Can ship immediately
Pricing:
- 1$2.117
- 500$2.117
- 1,000$2.01618
Quote It
Technical Details
- Series:Military, MIL-PRF-55342, RM1206
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:22.6 kOhms
- Tolerance:±0.1%
- Power (Watts):0.25W, 1/4W
- Composition:Thin Film
- Features:Military, Non-Inductive
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 150°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:-
- Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max):0.033" (0.84mm)
- Number of Terminations:2
- Failure Rate:R (0.01%)
