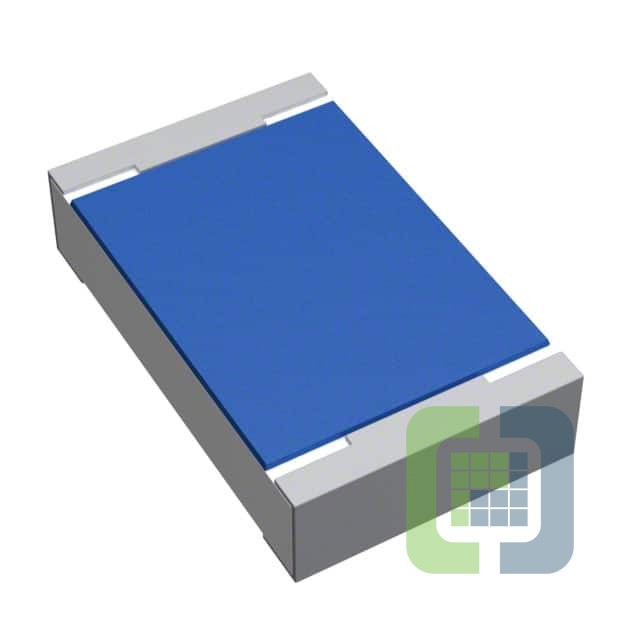

TNPU0805500RAZEN00
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 500 OHM 0.05% 1/8W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet TNPU0805500RAZEN00 Datasheet
-
ECAD Model
- Share
In Stock: 1,732
Can ship immediately
Pricing:
- 1$2.8
- 1,000$1.31008
Quote It
Technical Details
- Series:TNPU e3
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:500 Ohms
- Tolerance:±0.05%
- Power (Watts):0.125W, 1/8W
- Composition:Thin Film
- Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
- Temperature Coefficient:±5ppm/°C
- Operating Temperature:-55°C ~ 125°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:AEC-Q200
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
