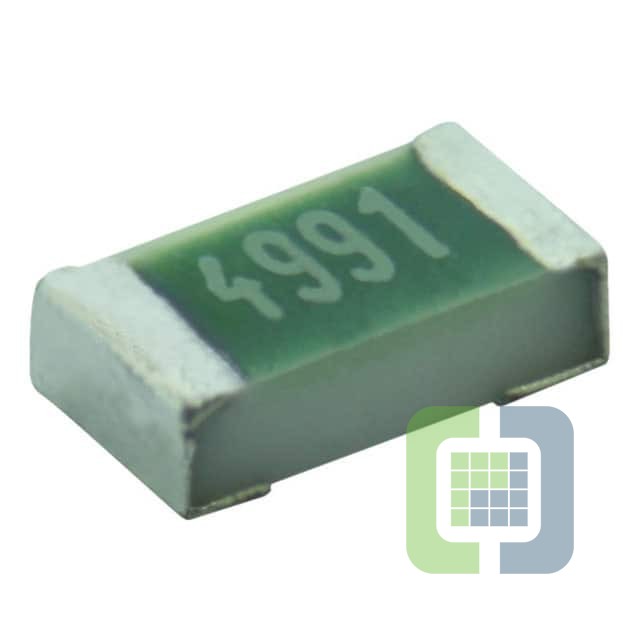

TNPW060320K0BXEN
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 20K OHM 0.1% 1/8W 0603
- CategoryChip Resistor - Surface Mount
- Datasheet TNPW060320K0BXEN Datasheet
-
ECAD Model
- Share
In Stock: 734
Can ship immediately
Pricing:
- 1$0.88
- 1,000$0.3625
Quote It
Technical Details
- Series:TNPW e3
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:20 kOhms
- Tolerance:±0.1%
- Power (Watts):0.125W, 1/8W
- Composition:Thin Film
- Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
- Temperature Coefficient:±15ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Ratings:AEC-Q200
- Size / Dimension:0.063" L x 0.033" W (1.60mm x 0.85mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
