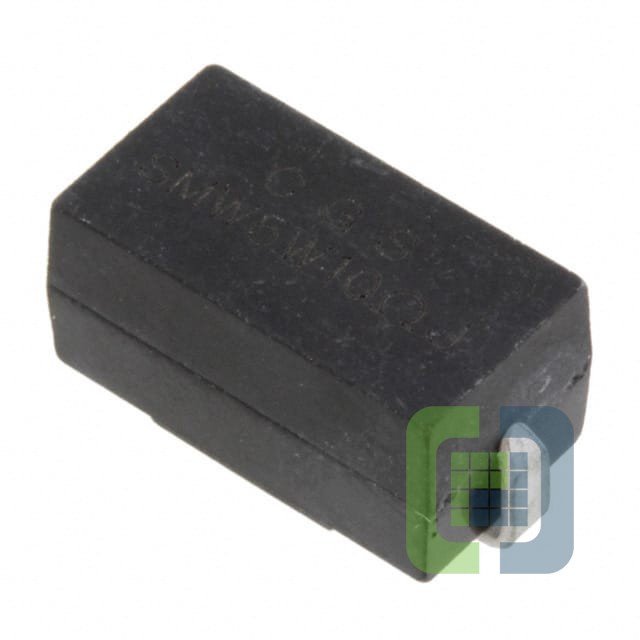

SMW56R8JT
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 6.8 OHM 5% 5W 5329
- CategoryChip Resistor - Surface Mount
- Datasheet SMW56R8JT Datasheet
-
ECAD Model
- Share
In Stock: 319
Can ship immediately
Pricing:
- 1$0.93
- 500$0.42692
- 1,000$0.35487
- 2,500$0.34687
- 5,000$0.3402
- 12,500$0.33219
- 25,000$0.32285
Quote It
Technical Details
- Series:SMW, CGS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:6.8 Ohms
- Tolerance:±5%
- Power (Watts):5W
- Composition:Wirewound
- Features:Flame Retardant Coating, Safety
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 200°C
- Package / Case:5329 (13573 Metric), J-Lead
- Supplier Device Package:SMD
- Ratings:-
- Size / Dimension:0.531" L x 0.287" W (13.50mm x 7.30mm)
- Height - Seated (Max):0.280" (7.10mm)
- Number of Terminations:2
- Failure Rate:-
