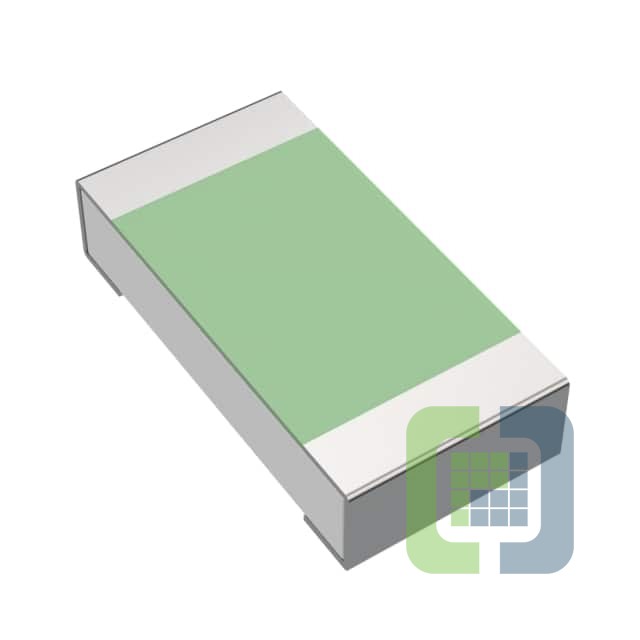

TNPW0805715KBYEA
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 715K OHM 0.1% 1/5W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet TNPW0805715KBYEA Datasheet
-
ECAD Model
- Share
In Stock: 383
Can ship immediately
Pricing:
- 1$0.98
- 5,000$0.406
Quote It
Technical Details
- Series:TNPW e3
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:715 kOhms
- Tolerance:±0.1%
- Power (Watts):0.2W, 1/5W
- Composition:Thin Film
- Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
- Temperature Coefficient:±10ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:AEC-Q200
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
