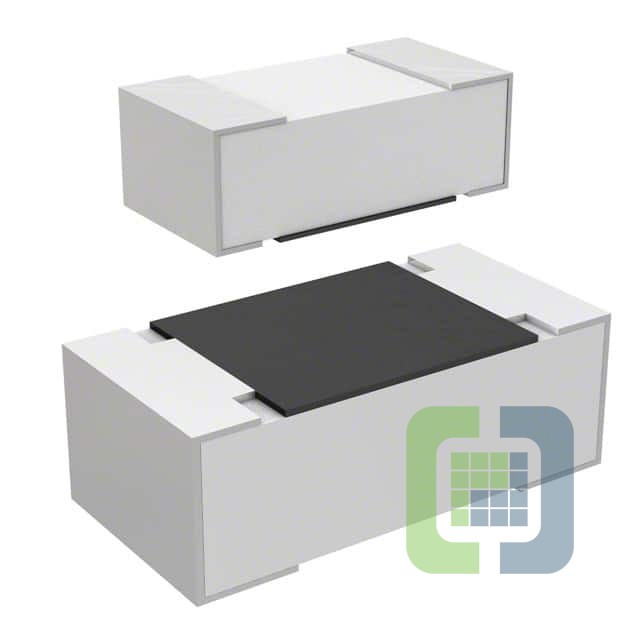

RCWL0402R560JQEA
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.56 OHM 5% 1/16W 0402
- CategoryChip Resistor - Surface Mount
- Datasheet RCWL0402R560JQEA Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$0.133
- 10,000$0.133
- 30,000$0.1304
- 50,000$0.12914
Quote It
Technical Details
- Series:RCWL
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:560 mOhms
- Tolerance:±5%
- Power (Watts):0.063W, 1/16W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Current Sense, Moisture Resistant
- Temperature Coefficient:±400ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402
- Ratings:AEC-Q200
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.016" (0.40mm)
- Number of Terminations:2
- Failure Rate:-
