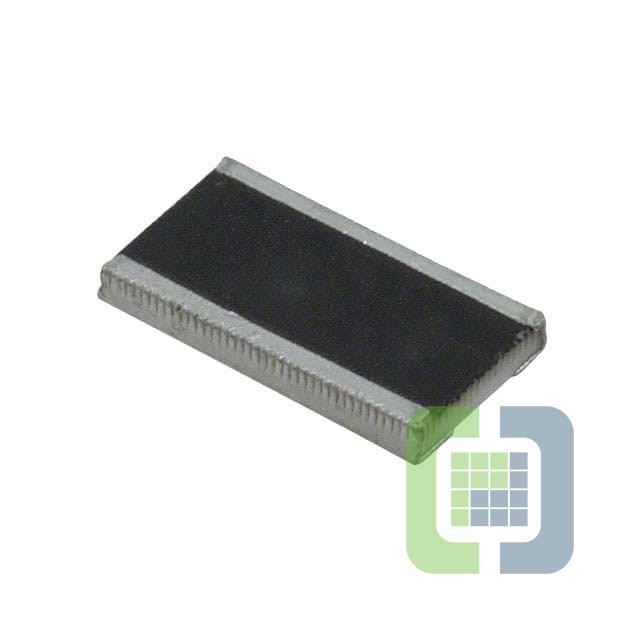

RCL1225560RJNEG
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 560 OHM 2W 2512 WIDE
- CategoryChip Resistor - Surface Mount
- Datasheet RCL1225560RJNEG Datasheet
-
ECAD Model
- Share
In Stock: 142
Can ship immediately
Pricing:
- 1$0.18492
- 2,000$0.17651
- 6,000$0.17322
- 10,000$0.17062
Quote It
Technical Details
- Series:RCL
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:560 Ohms
- Tolerance:±5%
- Power (Watts):2W
- Composition:Thick Film
- Features:Automotive AEC-Q200
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:Wide 2512 (6432 Metric), 1225
- Supplier Device Package:1225
- Ratings:AEC-Q200
- Size / Dimension:0.126" L x 0.248" W (3.20mm x 6.30mm)
- Height - Seated (Max):0.031" (0.80mm)
- Number of Terminations:2
- Failure Rate:-
