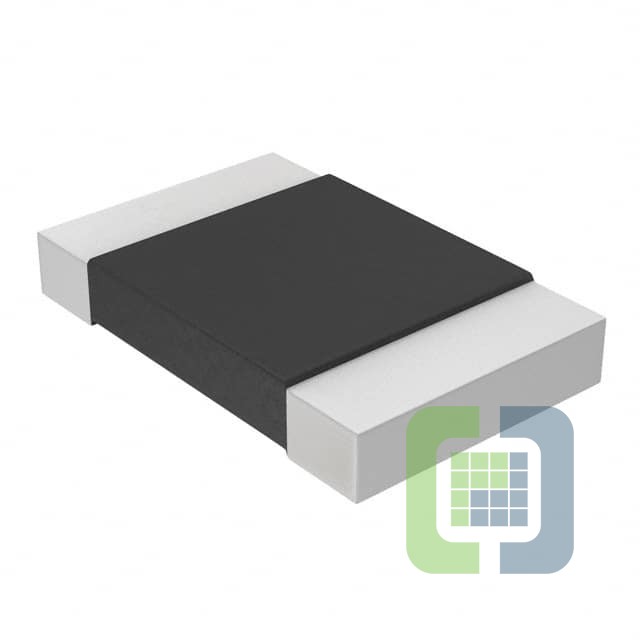

WSL0805R0300DBA
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.03 OHM 0.5% 1/8W 0805
- CategoryChip Resistor - Surface Mount
-
ECAD Model
- Share
In Stock: 129
Can ship immediately
Pricing:
- 1$1.323
- 100$1.323
- 300$1.134
- 500$0.945
- 1,000$0.819
- 5,000$0.7938
Quote It
Technical Details
- Series:WSL
- Package:Bulk
- Part Status:Active
- Resistance:30 mOhms
- Tolerance:±0.5%
- Power (Watts):0.125W, 1/8W
- Composition:Metal Element
- Features:Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
- Temperature Coefficient:±75ppm/°C
- Operating Temperature:-65°C ~ 170°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:AEC-Q200
- Size / Dimension:0.080" L x 0.050" W (2.03mm x 1.27mm)
- Height - Seated (Max):0.018" (0.46mm)
- Number of Terminations:2
- Failure Rate:-
