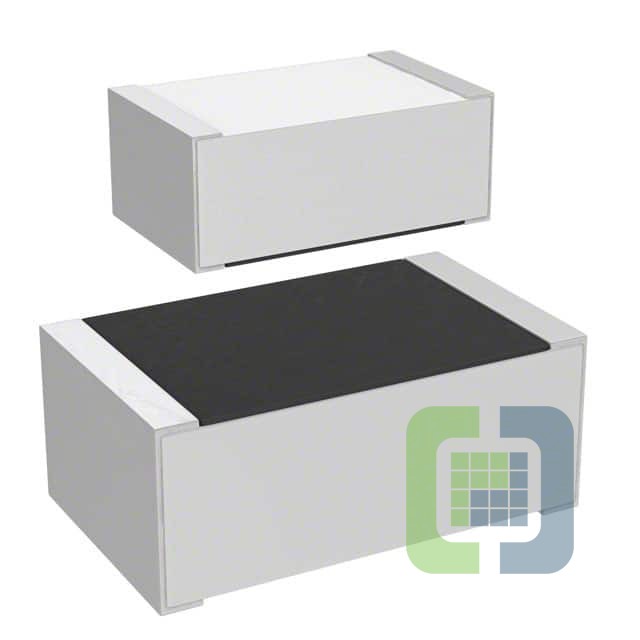

M55342E06B13B7RTP
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 13.7KOHM 0.1% 0.15W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet M55342E06B13B7RTP Datasheet
-
ECAD Model
- Share
In Stock: 186
Can ship immediately
Pricing:
- 1$12.5712
- 100$6.3504
- 300$5.75507
- 500$5.481
Quote It
Technical Details
- Series:Military, MIL-PRF-55342, RM0705
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:13.7 kOhms
- Tolerance:±0.1%
- Power (Watts):0.15W
- Composition:Thin Film
- Features:Military, Non-Inductive
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 150°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0705
- Ratings:-
- Size / Dimension:0.080" L x 0.050" W (2.03mm x 1.27mm)
- Height - Seated (Max):0.033" (0.84mm)
- Number of Terminations:2
- Failure Rate:R (0.01%)
