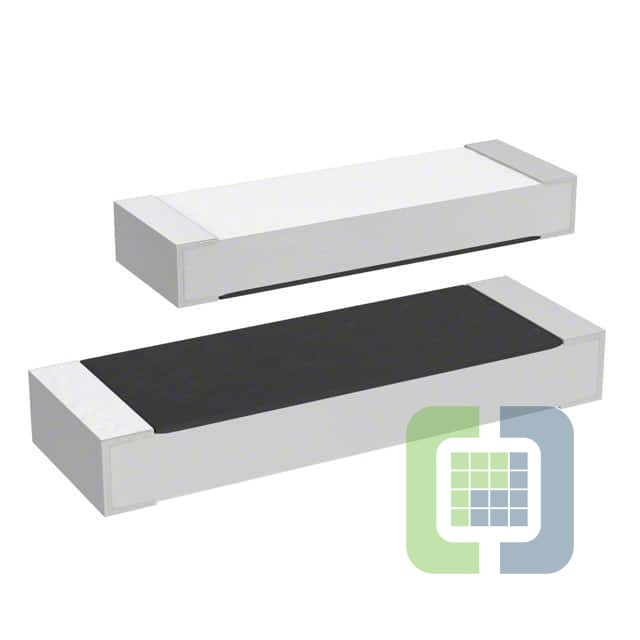

M55342H05B806DRWS
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 806 OHM 1% 0.225W 2208
- CategoryChip Resistor - Surface Mount
- Datasheet M55342H05B806DRWS Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$12.816
- 100$5.292
- 1,000$4.5675
Quote It
Technical Details
- Series:Military, MIL-PRF-55342, RM2208
- Package:Tray
- Part Status:Active
- Resistance:806 Ohms
- Tolerance:±1%
- Power (Watts):0.225W
- Composition:Thin Film
- Features:Military, Non-Inductive
- Temperature Coefficient:±50ppm/°C
- Operating Temperature:-55°C ~ 150°C
- Package / Case:Nonstandard
- Supplier Device Package:2208
- Ratings:-
- Size / Dimension:0.230" L x 0.075" W (5.84mm x 1.90mm)
- Height - Seated (Max):0.033" (0.84mm)
- Number of Terminations:2
- Failure Rate:R (0.01%)
