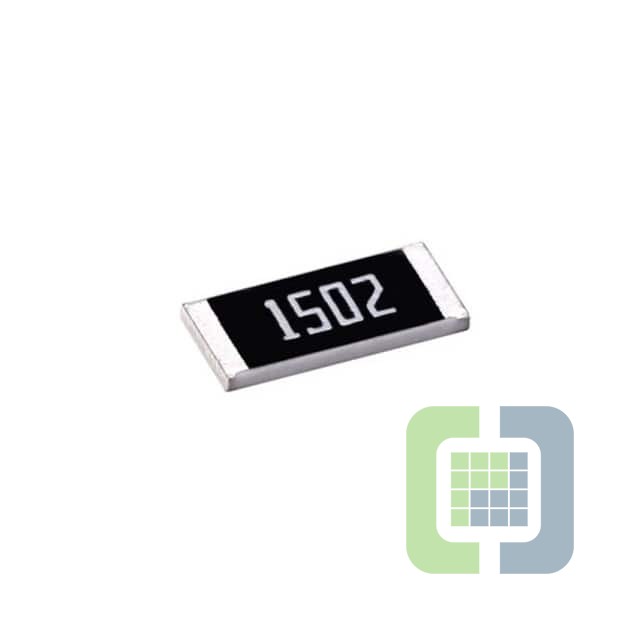

SWR12JTEA5600
Viking Tech
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 560 OHM 5% 1.5W 2512
- CategoryChip Resistor - Surface Mount
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SWR
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:560 Ohms
- Tolerance:±5%
- Power (Watts):1.5W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Pulse Withstanding
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:2512 (6432 Metric)
- Supplier Device Package:2512
- Ratings:AEC-Q200
- Size / Dimension:0.250" L x 0.122" W (6.35mm x 3.10mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
