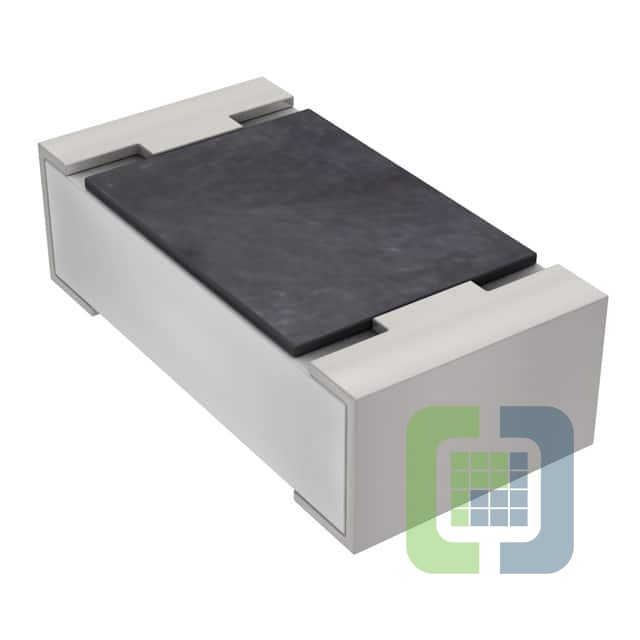

RT0603DRD07820RL
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 820 OHM 0.5% 1/10W 0603
- CategoryChip Resistor - Surface Mount
- Datasheet RT0603DRD07820RL Datasheet
-
ECAD Model
- Share
In Stock: 1,851
Can ship immediately
Pricing:
- 1$0.17
- 5,000$0.02065
- 10,000$0.01927
- 25,000$0.01901
Quote It
Technical Details
- Series:RT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:820 Ohms
- Tolerance:±0.5%
- Power (Watts):0.1W, 1/10W
- Composition:Thin Film
- Features:-
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Ratings:-
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
