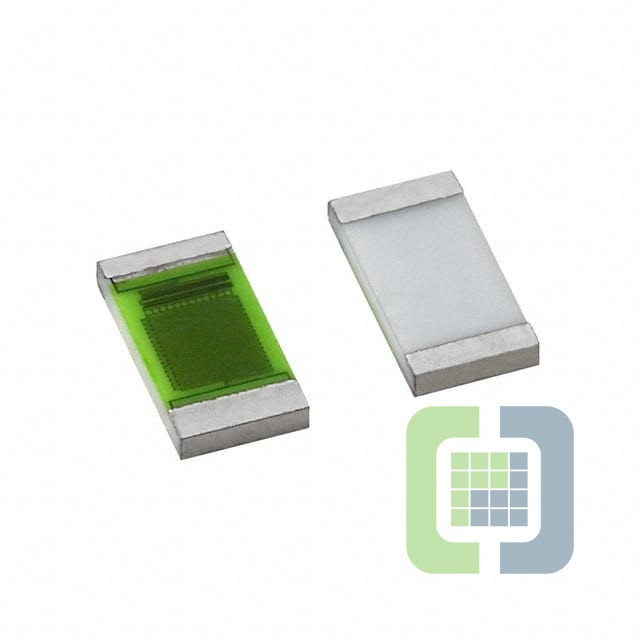

PTN1206E56R2BST1
Vishay
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 56.2 OHM 0.1% 0.4W 1206
- CategoryChip Resistor - Surface Mount
- Datasheet PTN1206E56R2BST1 Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$0.5852
- 1,000$0.5852
Quote It
Technical Details
- Series:PTN
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:56.2 Ohms
- Tolerance:±0.1%
- Power (Watts):0.4W, 2/5W
- Composition:Thin Film
- Features:Anti-Sulfur, Moisture Resistant, Non-Inductive
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:-
- Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max):0.033" (0.84mm)
- Number of Terminations:2
- Failure Rate:-
