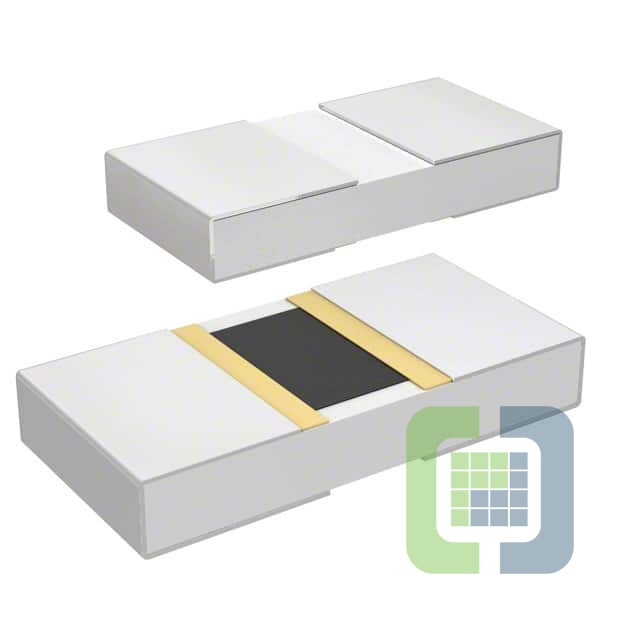

PHP00805E20R0BST1
Vishay
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 20 OHM 0.1% 5/8W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet PHP00805E20R0BST1 Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$1.64
- 1,000$0.609
Quote It
Technical Details
- Series:PHP
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:20 Ohms
- Tolerance:±0.1%
- Power (Watts):0.63W, 5/8W
- Composition:Thin Film
- Features:Flame Proof, Moisture Resistant, Safety
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:-
- Size / Dimension:0.080" L x 0.050" W (2.03mm x 1.27mm)
- Height - Seated (Max):0.033" (0.84mm)
- Number of Terminations:2
- Failure Rate:-
