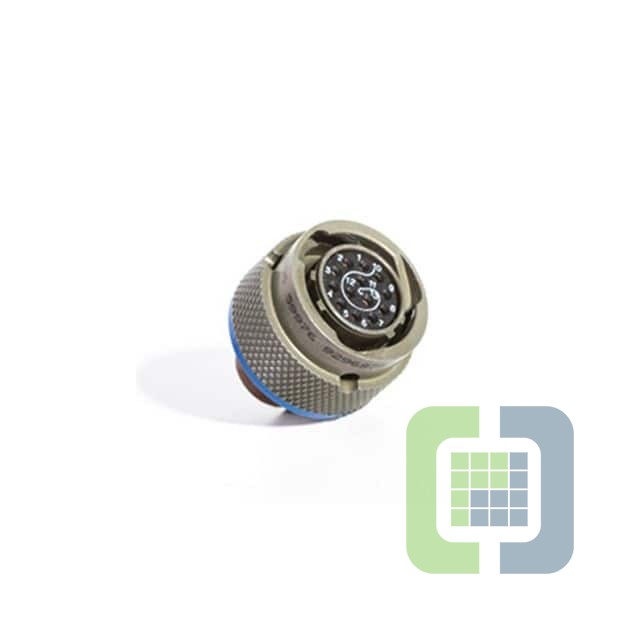

MS27513E16B8P
Amphenol Aerospace Operations
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT MALE 8POS GOLD CRIMP
- CategoryCircular Connectors
- Datasheet MS27513E16B8P Datasheet
-
ECAD Model
- Share
In Stock: 137
Can ship immediately
Pricing:
- 1$85.35
- 5$80.04505
- 10$68.9891
- 25$65.00897
- 50$61.47106
- 100$59.25988
Quote It
Technical Details
- Series:Military, MIL-DTL-38999 Series II, JT
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Male Pins
- Number of Positions:8
- Shell Size - Insert:16-8
- Shell Size, MIL:-
- Mounting Type:Panel Mount
- Mounting Feature:Flange
- Termination:Crimp
- Fastening Type:Bayonet Lock
- Orientation:N (Normal)
- Shell Material:Aluminum Alloy
- Shell Finish:Olive Drab Cadmium over Nickel
- Contact Finish - Mating:Gold
- Color:Olive Drab
- Ingress Protection:-
- Material Flammability Rating:-
- Features:-
- Shielding:Unshielded
- Current Rating (Amps):-
- Voltage Rating:-
- Cable Opening:-
- Operating Temperature:-65°C ~ 175°C
